民用航空驾驶舱显示产品
抬头显示设备（HUD），又叫平视显示设备，使驾驶员不必低头，就能看清重要信息。

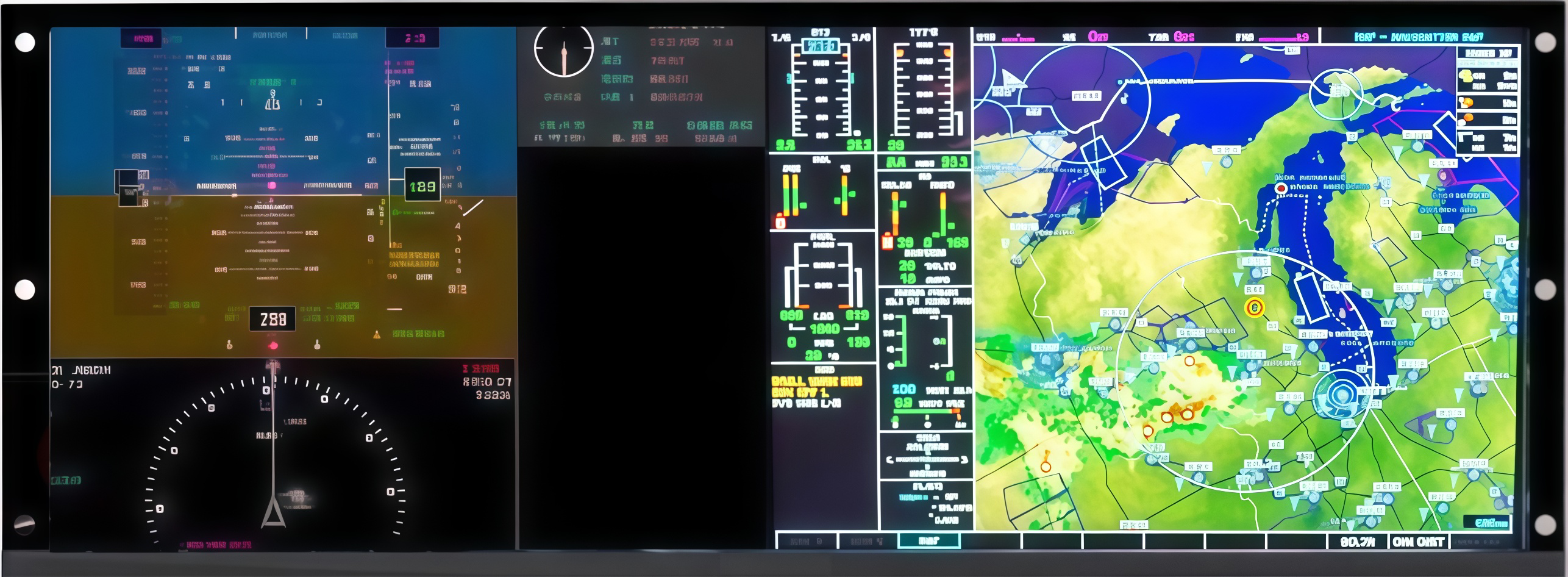

仪表板显示设备（HDD），可指示飞机在飞行中的运动参数（飞行高度、飞行速度和加速度、姿态角和姿态角速度等）。
便携显示产品：主要包含电子飞行包（EFB），是指便于驾驶员做好各飞行阶段的准备工作，携带或安装在飞机驾驶舱内供资料检索、飞行性能计算、对照检査等所用的数字式工具。
Head-Up Display (HUD) allows pilots to view critical information without lowering their heads.
Head-Down Display (HDD) indicates aircraft motion parameters during flight, including flight altitude, speed, etc.
Portable Display Products: EFB, a digital tool designed to assist pilots in preparing for all phases.
仪表板显示设备（HDD），可指示飞机在飞行中的运动参数（飞行高度、飞行速度和加速度、姿态角和姿态角速度等）。
便携显示产品：主要包含电子飞行包（EFB），是指便于驾驶员做好各飞行阶段的准备工作，携带或安装在飞机驾驶舱内供资料检索、飞行性能计算、对照检査等所用的数字式工具。
Head-Up Display (HUD) allows pilots to view critical information without lowering their heads.
Head-Down Display (HDD) indicates aircraft motion parameters during flight, including flight altitude, speed, etc.
Portable Display Products: EFB, a digital tool designed to assist pilots in preparing for all phases.
技术特点
民航驾舱显示产品具有高透过率、宽温，能适应极低温、及高温工作环境；航空级产品认证；宽视角、色彩纯正不偏色、卓越电磁兼容性及防护性能、具有极高可靠性，满足严苛航空环境需求。多款产品为头部航空企业长周期供货。
Aviation cockpit display products feature high transmittance, wide temperature tolerance (capable of operating in extreme low- and high-temperature environments), and aviation-grade certifications. These products offer wide viewing angles, true color reproduction without distortion, excellent electromagnetic compatibility, robust protective performance, and exceptional reliability to meet stringent aviation environmental requirements. Multiple product lines have been consistently supplied to leading aviation manufacturers for long-term applications.
产品参数
| 产品尺寸 | Size | 1.8"/3.8" | 3.4"/4.2 | 5" | 7.1"/8.8" | 10.4" | 12.1" | 15.4" |
| 分辨率 | Resolution | 1280*1024 | 480*480/600*600 | 640*480 | 600*600/768*768 | 1024*768 | 1024*768 | 440*900/1680*1050 |
| 透过率 | Transmittance | 15% | 3.8%/4.2% | - | 4.1%/4.7% | 4.2% | - | 5.3%/4.5% |
| 对比度 | Contrast Ratio | 800:1 | 800:1/1000:1 | - | 900:1/1100:1 | 1000:1 | - | 1000:1 |
| 工作温度 | Operating Temperature | -40℃-70℃ | -40℃-85℃ | -40℃-70℃ | -40℃-80℃ | -40℃-70℃ | -30℃-80℃ | -40℃-85℃ |
| 接口 | Interface | TTL | TTL | CVBS | LVDS | LVDS | LVDS | LVDS |
| 产品形态 | Product | OC | OC/LCM | Display Unit | OC/LCM | OC | TLCM | OC |
